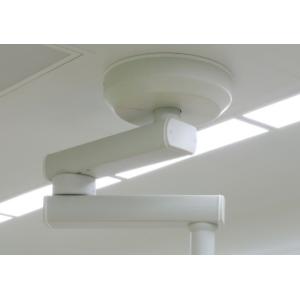

    Hospital Ceiling Mounted Surgical Pendant Single Arm For Electronic Endoscope Operating

    Ask Lasest Price
    Brand Name : Zenva
    Model Number : EX-50SE
    Certification : CE ISO9001 ISO 13485
    Price : Negotiate
    Payment Terms : T/T
    Delivery Time : 7-15 working days
    • Product Details
    • Company Profile

    Hospital Ceiling Mounted Surgical Pendant Single Arm For Electronic Endoscope Operating

    Operation room equipment medical pendant endoscopy ceiling pendant anesthesia pendant

    Hospital Ceiling Mounted Surgical Pendant Single Arm For Electronic Endoscope Operating




    Operating room Pendant Detailed Technical Parameter

    1. apply in operating room ,endoscope room ,anesthesia room and hospital wards so on

    2. is available in single and double arm configurations .Each joint has a rotation range up to ≤350 degree.

    3. ceiling

    4. pendant column can be custom designed to accommodate a large variety of medical gas outlets and electrical device.

    5. one arm, can rotation, rotation angle≤350 degree.

    6. high-strength aluminium alloy,wear-well reduce your cost

    7. pendant color blue ,red and so on

    8 pendant dimension can customize

    9. medical gas outlet optional German / British /America/Japanese/ French /Chinese standards.

    10. can horizontal rotation ,cannot lift


    Specification

    ModelEX-50-E-S Single ArmMark
    Materialused high-strength aluminum alloy ,modular design ,surface electrostatic powder painting,prevent corrosive ,easy to cleanlow maintenance,never rust
    Brake waydamping friction brake,to make sure without drifting and easy to stop,insure safepneumatic is optional
    rotary arm length1000mm(standard configuration)length is optional
    rotary radius≥650mm
    Head servicecolumn ,standard height 800mmheight is optional
    loading≥180kg
    shelf loading≥60kg
    degrees rotation≤350 º

    Standard Configuration

    ModelEX-50-E-S Single ArmMark
    Shelf2 pcs
    Drawer1 pcs
    I.V Pole1 pcs
    Extension arm1 pcs

    Gas outlets

    		Surgical PendantAnesthesia PendantEndoscopy Pendant
    O2*1,Vac*1,Air*1

    O2*1,Vac*1,Air*1

    N2O*1,AGSS*1

    O2*1,Vac*1,Air*1

    CO2*1

    		DIN Standard
    Electrical socket6pcs (220V 10 A)Universal Type

    Other Configuration optional

    RJ 45Quantity is optional according to hospital need
    Video SocketQuantity is optional according to hospital need
    Grounding socketQuantity is optional according to hospital need
    Monitor bracketQuantity is optional according to hospital need
    Electrical socket and gas outlets u can choose different standards,quantity is optional according to hospital need
